FT Series
Linear Acuators with Standard Force Ratings Exceeding 20 Tons

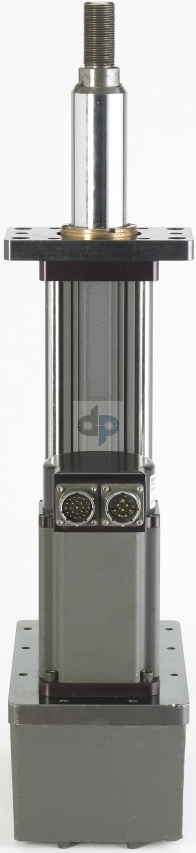

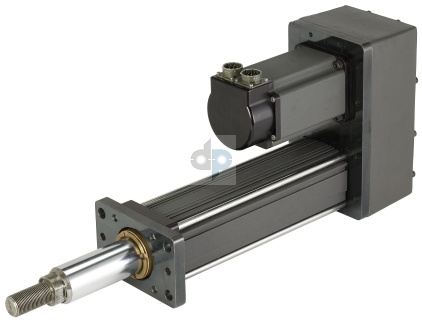

The FT Series force tubes feature Exlar's roller screw technology housed in a telescoping tube mechanism.
As the screw rotates, the force tube extends and retracts with the follower.
The FT Series is compatible with many standard motors, and mounting and gearing configurations are offered for nearly any application.
The three standard frame sizes offer strokes from 12 to 96 inches, with loads up to 40,000 lbf.
Exlar's roller screw technology results in longer life, higher speeds, and high loads when compared to other technologies, such as ball screw and acme screw actuators. With similar sized actuators under similar conditions, the FT Series is expected
to have up to 15 times the working life of other actuator technologies. The sealed housing of the FT Series keeps abrasive
and corrosive contaminants from reaching the actuator's internal components, resulting in long, trouble-free operation under
severe conditions. Grease lubrication is standard on the FT Series, although provisions for oil-filled lubrication are available.
FT Series Ordering Info
| FTAA - BBCC - DEF-GGG - {XX .. .. XX - #####} | ||
|---|---|---|
| AA = FT Frame Size | GGG = Motor Mount Provisions* (Please indicate the motor that will be used with the FT Actuator by it's 3 digit code.) | |
| 35 = 3.5 inch frame actuator | NMT = No motor mount -- keyed shaft on base unit only | |
| 60 = 6.0 inch frame actuator | N34 = NEMA 34 motor mount | |
| 80 = 8.0 inch frame actuator | N42 = NEMA 42 motor mount | |
| BB = Stroke Length | N56 = NEMA 56 motor mount | |
| 06 = 6 inch (FT35) | AB3,4,6,8 = Allen Bradley Ultra 3, 4, 6, & 8 inch motors | |
| 12 = 12 inch (FT35, 60, 80) | BD3,4,6,8 = Baldor 3, 4, 6, & 8 inch motors | |
| 18 = 18 inch (FT35) | CE3,4,6,8 = Custom Servo English 3, 4, 6, & 8 inch motors | |
| 24 = 24 inch (FT35, 60, 80) | CM3,4,6,8 = Custom Servo Metric 3, 4, 6, & 8 inch motors | |
| 36 = 36 inch (FT35, 60, 80) | EC3,4,6,8 = ElectroCraft F&H 3000, 4000, 6000 series, 8000 Series | |
| 48 = 48 inch (FT35, 60, 80) | EE3,4 = Emerson EMC Metric English 3 & 4 inch motors | |
| CC = Lead | EM3,4,6,8 = Emerson EMC Metric 3, 4, 6, & 8 inch Metric motors | |
| 05 = 0.2 inch (FT35) | EX2,3,4,6 = Exlar SLM/SLG motors | |
| 06 = 0.23 inch (FT60, 80) | FA 4,6,8 = Fanuc 4, 6 & 8 inch motors | |
| 10 = 0.39 inch (FT35) | IN3,4,6,8 = Indramat 3, 4, 6, & 8 inch motors | |
| 12 = 0.47 inch (FT60,80) | KM2,4,6,8 =Kollmorgen B & M 20, 40, 60, & 80 Series | |
| 20 = 0.79 inch (FT35) | MT3,4,6,8 = Mitsubishi 3,4,6 & 8 inch motors | |
| 30 = 1.18 inch (FT60,80) | PS3,4,6,8 =Pacific Scientific PMA/PMB Series | |
| D= Mounting Style | PC2,3,4,6 = Parker Compumotor Apex 2.7, 3.6, 4.5, & 5.6 inch | |
| S = Side mount | YS3,4,6,8 = Yaskawa 3, 4, 6, & 8 inch motors | |
| L = Side lugs | MXX Unlisted or special motor mounting provisions | |
| E = Extended tie rods | .XX .. XX = Mechanical Options | |
| C = Rear clevis (NAW Inline) | Special Follower | |
| F = Front flange | PF = Preloaded follower** | |
| T = Side trunnion mount (not available on all sizes and legths) | FX = Special follower | |
| R = Rear flange (not available with inline motor mount) | End Switches | |
| B = Front / rear flange (not available with inline motor mount) | L1 = One adjustable switch | |
| X = Special | L2 = Two adjustable switches | |
| E = Motor Mounting Configurations | L3 = Three adjustable switchesx | |
| N = None | (Adjustable position throughout stroke, 10-30 VDC, PNP, N.C., 1 m, 3 wire embedded cable) |
|
| I = Inline direct drive (includes Exlar standard coupling) | ##### = Part No. Designator for Specials | |
| P = Parallel, 1:1 drive | Optional 5 digit assigned part number to designate unique PN. | |
| Q = Parellel, 2:1 reduction | ||
| X = Special | ||
| F = Rod End | ||
| M = Male , U.S. standard | ||
| A = Male, metric | ||
| X = Special | ||
| F = Female, US standard | ||
| B = Female, metric | ||
| Please provide a drawing of motor dimensions with all orders to insure proper mounting compatibility. | ||
| *Mounting face size, shaft length and other details of particular motors may require special adapters or provisions for mounting. Always discuss your motor selection with Exlar engineering. |
||
| ** This option offers a true zero backlash follower for the FT Series actuator. The dynamic load rating of zero backlash, preloaded screws is 63% of the dynamic load rating of the standard non-preloaded screws. The calculated travel life of a preloaded screw will be 25% of the calculated travel life of the same size and lead of a non-preloaded screw for the same application. Preloaded follower is not available with absolute feedback options. | ||
Applications:
- Automated assembly
- Automated flexible fixturing
- Automatic tool changers
- Ball screw replacement
- Chip and wafer handling
- Conveyor diverters / gates
- Cut-offs
- Die cutters
- Dispensers
- Entertainment
- Fillers
- Formers
- Hydraulic cylinder replacement
- Indexing stages
- Lifts
- Machine tool
- Material cutting
- Material handling
- Medical equipment
- Molding
- Open / close doors
- Packaging machinery
- Parts clamping
- Pick and place systems
- Plastics equipment
- Pneumatic cylinder replacement
- Precision grinders
- Precision valve control
- Pressing
- Process control
- Product sorting
- Sawmill equipment
- Semiconductor
- Simulators
- Stamping
- Tension control
- Test stands
- Tube bending
- Riveting / fastening / joining
- Robot manipulator arms
- Web guidance
- Welding
- Wire winding
- Ventilation control systems
- Volumetric pumps
