GSM & GSX Series Linear Actuators with Patented Integral Brushless Servo Motors
The original GS Series has been replaced by the GSX Series and GSM Series. Exlar continues to support the GS Series,
and full documentation and specifications are available. The GSM Series linear actuator is a cost effective solution
offering the standard capacity inverted screw technology with travel life 5 times the life of comparable ball screw
actuators. The GSM Series includes standard IP54 sealing, resulting in a longer lasting and more compact solution

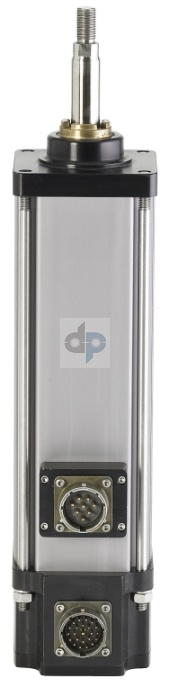

compared to ball screw actuators. The GSX Series linear actuator is suitable for just about any environment or application.

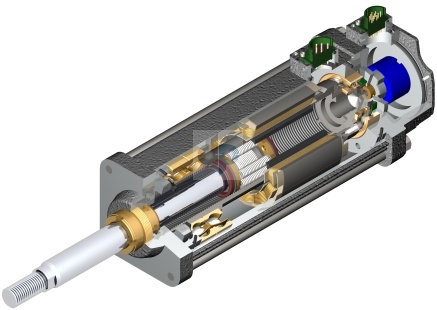

This series features Exlar's high capacity inverted roller screw technology, providing travel life 15 times that
of a comparable ball screw actuator. The GSX Series includes IP65 sealing, and these actuators come ported for air
cooling or oil cooling. This fully integrated unit delivers higher continuous motor torque than conventional wound motors, and has a much
longer working life than a ball screw system. Designed for Closed Loop Servo Systems, position feedback can be accomplished by resolver,
encoder, or internal linear position sensor. Exlar motors with T-LAM Technology offers maximum motor performance with UL approval and CE
compliance. The GSX's roller screw mechanism can handle heavier loads at higher speeds and is designed to withstand exposure to out side
contaminants. GSX actuators can be lubricated with either grease or recirculated oil, specify when ordering. Special OEM lubricants are
also available. GSX actuators are available in 5 frame styles (2"-7") and several mounting styles. Custom mounting styles can also be ordered.
Optional features include; anti-rotate mechanism, pre-loaded follower, electric brake, and external end switches.
GSX Ordering Information
| GSX AA - BB CC - D E F - GGG - HHH - II - {XX..XX - #####} | ||
|---|---|---|
| AA = GS Actuator Size | GGG = Feedback Type (also specify the amplifier/drive type model being used when ordering) - Standard incremental encoder - 2048 line with commutation, 5vdc. - Standard resolver - Size 15 resolver. Click here for motor data files. | |
| 20 = 2 inch frame actuator | Custom Feedback - please consult application engineering: XX1 = Wiring and feedback device information must be provided and new feedback callout will be created. |
|
| 30 = 3 inch frame actuator | Mounting Only - please consult application engineering: 001 = Feedback Mount .375 inch shaft ready for size 15 resolver or encoder. 002 = Feedback Mount 8 mm shaft ready for feedback device. |
|
| 40 = 4 inch frame actuator | 002 = Same as above, 8 mm shaft | |
| 50 = 5 inch frame actuator | Allen-Bradley/Rockwell: Actuators used with Kinetix and/or Sercos based control systems require a 3rd party motion database purchased from AB/Rockwell. Please contact your AB/Rockwell representative for support. |
|
| 60 = 7 inch frame actuator | AB1 = Standard incremental encoder F/S/H motor wiring w/MS connectors for 'M' option | |
| BB = Stroke Length | AB5 = Stegmann SRM050 Hiperface multi-turn absolute encoder - MPL 100mm or higher motor wiring w/MS connectors for 'M' option - Plug & Play feedback option | |
| 03 = 3 inches (GSX20, 30) | AB6 = Standard resolver | |
| 06 = 5.9 inches (GSX30) 6 inches (GSX20, 40, 50, and 60) |
AB7 = Standard incremental encoder - MPL 100 mm or higher motor wiring w/MS connectors for 'M' option | |
| 08 = 8 inches (GSX40) | AB8 = Standard incremental encoder - MPL 75mm or less motor wiring w/M23 Euro connectors for 'M' option | |
| 10 = 10 inches (All models) | AB9 = Hiperface Stegmann SRM050 multi-turn absolute encoder - MPL 75 mm or less motor wiring w/M23 euro connectors for 'M' option - Plug & Play feedback option | |
| 12 = 12 inches (GSX20, 30, 40) | ABA = Hyperface Stegmann SKM036 multi-turn absolute encoder - MPL 215mm or higher motor wiring w/MS connectors for 'M' option - 460V stator only - Plug & Play feedback option | |
| 14 = 14 inches (GSX30, 50) | ABB = Hiperface Stegmann SKM036 multi-turn absolute encoder - MPL 75mm or less motor wiring w/M23 euro connectors for 'M' option - 460V stator only - Plug & Play option | |
| 18 = 18 inches (GSX30, 40) | AMKASYN: | |
| CC = Lead | AK1 = EnDat Heidenhain EQN1325 multi-turn absolute encoder - DS motor wiring w/M23 euro connectors for 'M' option | |
| 01 = 0.1 inches (GSX20, 30, 40, 50)9 | AK2 = EnDat Heidenhain EQN1125 multi-turn absolute encoder - DS motor wiring 2/M23 eruo connectors for 'M' option | |
| 02 = 0.2 inches (GSX20, GSX30, GSX40) | Advanced Motion Control: | |
| 03 = 0.25 inches (GSX60) | AM1 = Standard incremental encoder | |
| 04 = 0.4 inches (GSX20 only) | AM2 = Encoder 1000 line, with commutation, 5 vdc | |
| 05 = 0.5 inches (GSX30, 40, 60) | AM3 = Standard resolver | |
| 08 = 0.75 inch (GSX40,60)10 | AM5 = Encoder 5000 line, with commutation, 5 vdc | |
| 10 = 1.0 inches (GSX60)11 | API Controls: | |
| D = Connections | API = Standard resolver | |
| M = Manufacturer's connectors6 | AP2 = Standard incremental encoder | |
| I = Exlar standard M23 style10 | Aerotech: | |
| A = MS style (anodized) | AR1 = Encoder 5000 lien, with commutation, 5 vdc | |
| D = MS style (electroless nickel) | AR2 = Standard incremental encoder | |
| B = Embedded leads 3 ft. std. | ABB Robot: | |
| P = Embedded leads w/plug 3 ft. std. | BB1 = LTN resolver | |
| J = Embedded leads w "I" plug, 3' std | Baldor: | |
| X = Special (please specify) | BD2 = Standard resolver | |
| E = Mounting | BD3 = Standard incremental encoder | |
| S = Side Tapped Mounting Holes | Beckhoff: | |
| D = Double Side Tapped Mounting holes | BE1 = EnDat Heidenhain EQN1125 multi-turn absolute encoder - AM motor wiring w/M23 euro connectors for 'M' option | |
| E = Extended Tie Rods | Baumueller: | |
| F = Front Flange | B&R Automation: | |
| R = Rear Flange | BR1 = Standard resolver | |
| B = Rront and Rear Flange | BR2 = EnDat Heidenhain EQN1325 multi-turn absolute encoder - 8LS/8LM motor wiring w/M23 euro connectors for 'M' option | |
| T = Trunnion | Comau Robot: | |
| C = Rear Clevis | CM1 = Standard resolver | |
| X = Special (Please Specify) | Copley Controls: | |
| M = Metric Extended Tie Rods | CO1 = Standard incremental encoder | |
| F = Rod End | CO2 = Standard resolver | |
| M = Male, US Standard Thread | Control Techniques/Emerson: | |
| A = Male, Metric Standard Thread | CT1 = Hiperface Stegmann SRM050 multi-turn absolute encoder - FM/UM/EZ motor wiring w/M23 euro conenctors for 'M' option | |
| F = Female, US Standard Thread | CT2 = Hiperface Stegmann SRM050 multi-turn absolute encoder - NT motor wiring w/MS connectors for 'M' option | |
| B = Female, Metric Thread | CT3 = Hiperface Stegmann SKM036 multi-turn absolute encoder - FM/UM/EZ motor wiring w/M23 euro connectors for 'M' option | |
| X = Special (please specify) | CT4 = Standard incremental encoder - FM/UM/EZ m otor wiring w/M23 euro connectors for 'M' option | |
| CT5 = Standard resolver - FM/UM/EZ motor wiring w/M23 euro connectors for "m" option | ||
| CT7 = Encoder 5000 line, with commutation, 5 vedc - FM/UM/EZ motor wiring w/M23 euro connectors for 'M' option | ||
| Delta Tau Data Systems: | ||
| DT1 = Encoder 1000 line, with commutation, 5 vdc | ||
| DT2 = Standard resolver | ||
| Elmo Motion Control: | ||
| EL1 = Standard resolver | ||
| EL2 = Standard incremental encoder | ||
| EL3 = EnDat Heidenhain EQN1125 multi-turn absolute encoder | ||
| Emerson/Control Techniques: | ||
| EM2 = Standard incremental encoder - NT motor wiring w/MS connectors for 'M' option | ||
| EM5 = Encoder 5000 line, with commutation, 5 vdc - NT motor wiring w/MS connectors for 'M' option | ||
| Elau: | ||
| EU1 = Hiperface Stegmann SRS050 single-turn absolute encoder - SH otor wiring w/MS connectors for 'M' option | ||
| EU3 = Hiperface Stemann SKS036 single-turn absolute encoder - SH motor wiring w/MS connectors for 'M' option | ||
| EU4 = Hiperface Stegmann SKM036 multi-turn absolute encoder - SH motor wiring w/MS connectors for 'M' option | ||
| Exlar: | ||
| EX4 = Standard resolver | ||
| Fanuc Robot/CNC: | ||
| FA1 = PULSECODER alpha i AR128 | ||
| FA2 = PULSECODER alpha A64 | ||
| G&L Motion Control/Danaher Motion: | ||
| GL1 = Standard incremental encoder - HSM wiring w/MS connectors for 'M' option | ||
| GL2 = Standard incremental encoder - LSM-MSM motor wiring w/M23 euro connectors for 'M' option | ||
| GL3 = Standard incremental encoder - NSM motor wiring w/MS connectors for 'M' option | ||
| GL4 = EnDat Heidenhain EQN1125 multi-turn absolute encoder - AKM motor wiring w/M23 euro connectors for 'M' option | ||
| Infranor: | ||
| IF1 = Standard resolver | ||
| Indramat/Bosch-Rexroth: | ||
| IN1 = EnDat Heidenhain EQN1325 multi-turn absolute encoder - MKD/MHD motor wiring w/M23 euro connectors for 'M' option | ||
| IN5 = EnDat Heidenhain EQN1125 multi-turn absolute encoder - MKD/MHD motor wiring w/M23 euro connectors for 'M' option | ||
| IN6 = Standard resolver - MKD/MD motor wiring w/M23 euro connectors for M' option | ||
| IN7 = Hiperface Stegmann SRM050 multi-turn absolute encoder - MSK motor wiring w/M23 euro connectors for 'M' option - plug & play option | ||
| Jetter Technologies: | ||
| JT1 = Standard resolver - JH/JL motor wiring w/M23 euro connectors for 'M' option | ||
| Kollmorgen/Danaher: | ||
| KM4 = EnDat Heidenhain EQN1325 multi-turn absolute encoder - AKM motor wiring w/M23 euro connectors for 'M' option | ||
| KM5 = Standard resolver - AKM motor wiring w/M23 euro connectors for 'M' option | ||
| KM6 = Standard incremental encoder - AKM motor wiring w/M23 euro connectors for 'M' option | ||
| Kuka Robot: | ||
| KU1 = Tyco Size 21 resolver | ||
| Kawasaki Robot: | ||
| KW1 = Kawasaki special encoder | ||
| Lenze/AC Tech: | ||
| LZ1 = Hiperface Stegmann SRM050 multi-turn absolute encoder - MCS motor wiring w/M23 euro connectors for 'M' option | ||
| LZ5 = Standard resolver - MCS motor wiring w/M23 euro connectors for 'M' option | ||
| LZ6 = Standard incremental encoder - MCS motor wiring w/M23 euro connectors for 'M' option | ||
| Matuschek: | ||
| MC1 = LTN resolver | ||
| Modicon: | ||
| MD1 = Standard resolver | ||
| Moog: | ||
| MG1 = Standard resolver | ||
| Motoman Robot: | ||
| MM1 = Yaskawa Serial encoder | ||
| Metronix: | ||
| MX1 = Standard resolver | ||
| MX2 = Hiperface Stegmann SKM036 multi-turn absolute encoder | ||
| MX3 = EnDat Heidenhain EQN1125 multi-turn absolute encoder | ||
| Nachi Robot: | ||
| NC1 = Tamagawa serial encoder | ||
| Ormec: | ||
| OR1 = Standard resolver | ||
| OR2 = Standard incremental encoder - G sereis motor wiring w/MS connectors for 'M' option | ||
| Parker Compumotor: | ||
| PC6 = Standard incremental encoder - SMH motor wiring w/M23 connectors for 'M' option - European only | ||
| PC7 = Standard resolver - SMH motor wiring w/M23 connectors for 'M' option - European only | ||
| PC8 = Standard incremental encoder - MPP series motor wiring w/PS connectors for 'M' option - US only | ||
| PC9 = Hiperface Stegmann SRM050 multi-turn absolute encoder - MPP motor wiring w/PS connectors for 'M' option - US only | ||
| PC0 = Standard resolver - MPP motor wiring w/PS connectors for 'M' option - US only | ||
| Pacific Scientific: | ||
| PS2 = Standard incremental encoder | ||
| PS3 = Standard resolver - PMA motor wiring w/M23 connectors for 'M' option | ||
| Stober Drives: | ||
| SB3 = EnDat Heidenhain EQN1125 multi-turn absolute encoder - ED/EK motor wiring w/M23 euro connectors for 'M' option | ||
| Seimens: | ||
| SM2 = standard resolver - 1FK7 motor wiring w/M23 connectors for 'M' option | ||
| SM3 = EnData Heidenhain EQN1325 multi-turn absolute encoder - 1FK7 motor wiring w/M23 euro connectors for 'M' option | ||
| SM4 = EnDat Heidenhain EQN1125 multi-turn absolute encoder - 1FK7 motor wiring w/M23 euro connectors for 'M' option | ||
| SM5 = Heidenhain incremental encoder - IFK7 motor wiring w/M23 euro connectors for 'M' option | ||
| SEW/Eurodrive: | ||
| SW1 = Standard resolver - CM motor wiring w/M23 euro connectors for 'M' option | ||
| SW2 = Standard incremental encoder | ||
| SW3 = Hiperface Stegmann SRM050 multi-turn absolute encoder - CM motor wiring w/M23 euro connectors for 'M' option | ||
| Whedco/Fanuc: | ||
| WD1 = Standard resolver | ||
| Yaskawa: | ||
| YS2 = Yaskawa absolute encoder - SGMGH motor wiring 40/50/60 Exlar frame sizes | ||
| YS3 = Yaskawa absolute encoder - SGMGH motor wiring 20/30 Exlar frame sizes | ||
| HHH = Motor Stator2 (All 8 Pole) | ||
| 118 = 1 stack, 115 Vrms | 318 = 3 stack, 115 Vrms | |
| 138 = 1 stack, 230 Vrms | 338 = 3 stack, 230 Vrms | |
| 158 = 1 stack, 400 Vrms | 358 = 3 stack, 400 Vrms | |
| 168 = 1 stack, 460 Vrms | 368 = 3 stack, 460 Vrms | |
| 218 = 2 stack, 115 Vrms | ||
| 238 = 2 stack, 230 Vrms | ||
| 258 = 2 stack, 400 Vrms | ||
| 268 = 2 stack, 460 Vrms | ||
| II = Motor Speed | ||
| 24 = 2400 rpm, GSX50, 60 | 50 = 5000 rpm, GSX20 | |
| 30 = 3000 rpm, GSX30, 40 | 01-99 = Special Speed, consult Exlar | |
| XX .. XX = Mechanical Options (Please list desired options) | ||
| Travel Options | ||
| PF = Preloaded follower1 | AR = External Anti-rotate assembly | |
| RB = Rear Brake4 (GSX50 only) | L1/2/3 = External Limit Switches | |
| XT = Special Travel Option | ||
| Motor Options | ||
| XM = Special motor option | XL = Special Lubrication | |
| Housing Options | ||
| FG = Food grade paint5 | EN = Electroless Nickel Plating5 | |
| SS = Stainless Steel housing5 | HC = Type III hard coat anodized, class 15 | |
| XH = Special housing option | ||
| Absolute linear feedback | ||
| LT = VRVT, including signal conditioner3 | ||
| ##### = Part No. Designator for Specials | ||
| Optional 5 digit assigned part number for unique model number. | ||
| 1. The dynamic load rating of zero backlash, preloaded screws is 63% of the dynamic load rating of standard non-preloaded screws. The calculated travel life of a preloaded screw will be 25% of the calculated travel life of the same size and lead of a non-preloaded screw for the same application. Preloaded follower is not available with absolute internal feedback. | ||
| 2. Stator voltage and pole options allow for catalog rated performance at varying amplifier bus voltages and pole configuration requirements. | ||
| 3. Linear feedback is not available in the GSX20 and not available in the GSX30 14" and 18". | ||
| 4. The brake option may require a third cable, consult Exlar. | ||
| 5. These housing options would typically be accompanied by the choice of the electroless nickel connectors if a connectorized unit were selected. This choice may also indicate the need for special material main rods or flanges. | ||
| 6. Available as described in Feedback Types. | ||
| 7. 0.1 lead not available above 12" stroke in GSX40 or 10" stroke in GSX50. | ||
| 8. 0.75 lead not available above 12". | ||
| 9. 1.0 lead not available above 10" stroke. | ||
| 10. GSX60 uses M40 size 1.5 power connector. | ||
